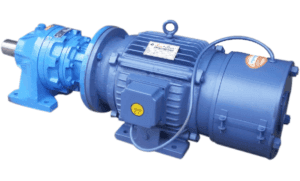

Break Motor With Gear
Warranty
1 Year Standard
Service
Covered by Warranty
Product Overview
The ultimate solution for high-torque, slow-speed precision. By integrating a speed reducer with our fail-safe braking system, this unit provides exceptional control for material handling lifts and rotary tables. Compact and powerful, it delivers massive output torque while ensuring safe, immediate stopping.
Key Features
- Combined braking and speed reduction
- High output torque
- Compact integrated design
- Precise positioning capability
- Quiet gear operation
Technical Specifications
| Power Range | 0.5 HP to 20 HP |
| Gear Ratio | 5:1 to 100:1 |
| Output Speed | 10 RPM to 300 RPM |
| Brake Torque | Aligned with motor capacity |
| Mounting | Universal Mounting |
| Lubrication | Synthetic Oil / Grease |
Common Applications
Slow Speed ConveyorsAutomatic GatesMaterial Handling LiftsRotary Tables
Frequently Asked Questions
What is a brake motor with gear?+
A brake motor with gear combines a speed reducer (gearbox) with a fail-safe braking motor in one compact unit. This provides high output torque at low speeds with precise positioning and immediate stopping capability. Ideal for conveyors, automatic gates, and rotary tables.
What gear ratios are available?+
Sun Star brake motors with gear are available with gear ratios from 5:1 to 100:1, providing output speeds from 10 RPM to 300 RPM. The power range is 0.5 HP to 20 HP.
Can brake motors with gear be used for automatic gates?+
Yes, they are commonly used for automatic gates, rolling shutters, and industrial doors. The integrated gearbox provides the high torque needed to move heavy gates, while the brake ensures secure stopping and holding.
