Standard Motor
Warranty
1 Year Standard
Service
Covered by Warranty
Product Overview

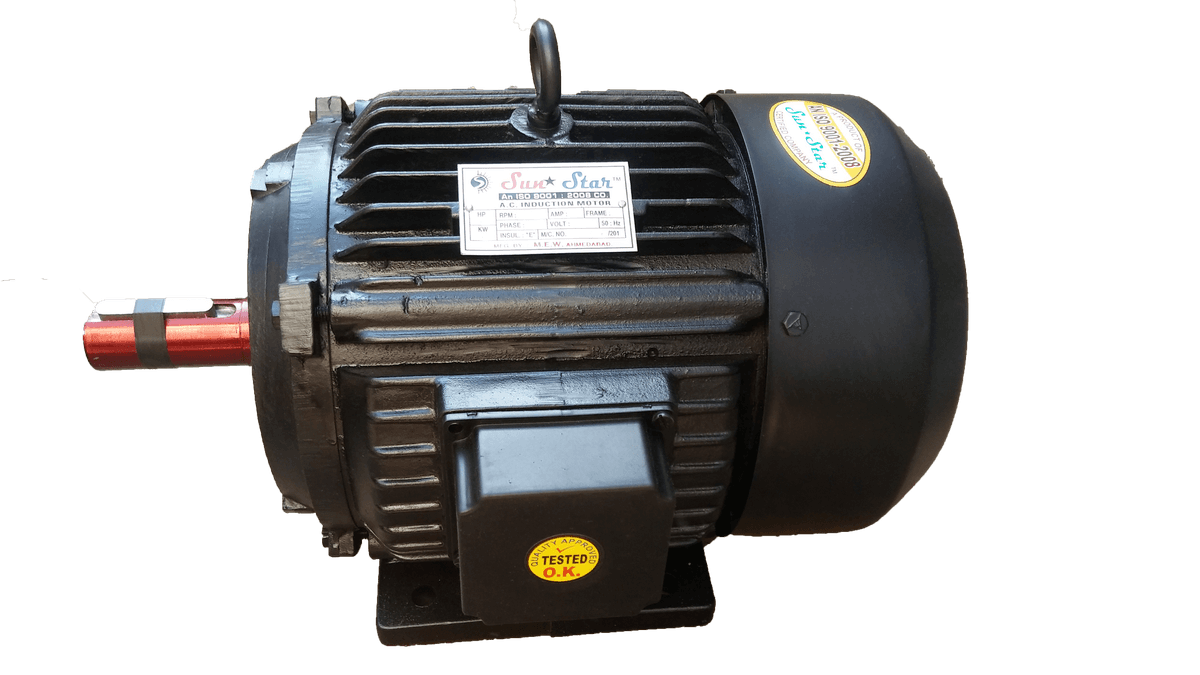

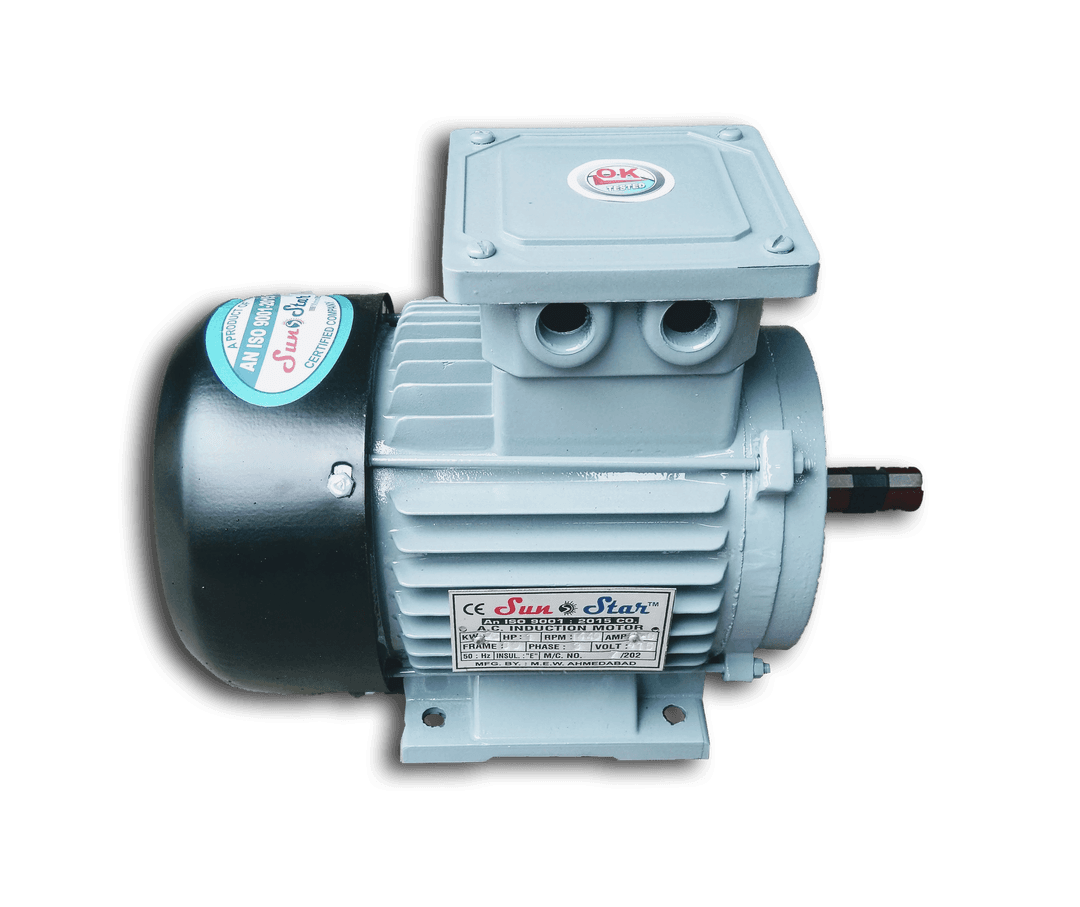

The workhorse of the industrial world. Our standard AC induction motors are engineered for the relentless demands of conveyors, compressors, and pumps. Built with high starting torque and a robust cast iron frame, these motors provide the consistent power needed to keep your primary machinery running without failure.
Key Features
- High starting torque for heavy loads
- Low noise operation
- Energy efficient design
- Robust cast iron frame
- Easy maintenance and long service life
Technical Specifications
| Power Range | 0.25 HP to 20 HP |
| Voltage | 415V ± 10% |
| Frequency | 50 Hz ± 5% |
| Speed | 1440 / 2800 / 960 / 750 RPM |
| Insulation | Class F |
| Protection | IP55 |
Common Applications
ConveyorsCompressorsPumpsFans & BlowersGeneral Machinery
Frequently Asked Questions
What is a standard induction motor?+
A standard induction motor is an AC electric motor that uses electromagnetic induction to convert electrical energy into mechanical energy. It's the most common type of industrial motor, used in conveyors, pumps, compressors, and fans. Sun Star Motors™ standard motors range from 0.25 HP to 20 HP.
What is the power range of Sun Star standard motors?+
Our standard induction motors are available from 0.25 HP to 20 HP, with speed options of 750, 960, 1440, and 2800 RPM. They operate on 415V ± 10% at 50 Hz frequency.
What IP rating do Sun Star standard motors have?+
All our standard motors come with IP55 protection rating, meaning they are fully dust-tight and protected against water jets from any direction. This makes them suitable for most industrial environments.
Are Sun Star standard motors energy efficient?+
Yes. Our standard motors are designed with high-grade electrical steel laminations and copper windings to maximize energy efficiency. We offer energy efficient motors as per IS 12615:2018 standards.
What is the warranty on Sun Star standard motors?+
All Sun Star Motors™ standard induction motors come with a 1-year standard warranty covering manufacturing defects. Extended warranty options are available on request.
