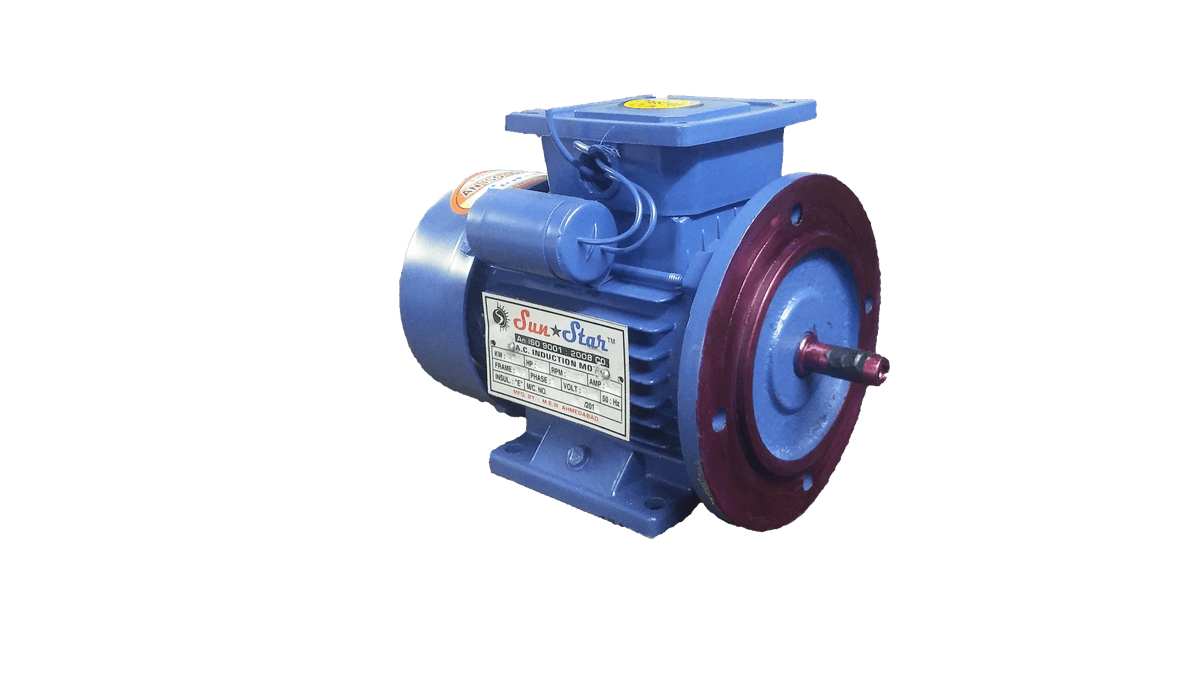

Foot Cum Flange Mounted Motor
Warranty
1 Year Standard
Service
Covered by Warranty
Product Overview
Precise alignment for direct-drive applications. This hybrid mounting design eliminates the need for separate base plates, ensuring perfect structural alignment with gearboxes and hydraulic pumps. The secure B5 flange provides a vibration-resistant connection for high-efficiency power transmission.
Key Features
- Direct coupling capabilities
- Secure B5 Flange mounting
- Eliminates need for base plate
- Perfect structural alignment
- Vibration resistant mounting
Technical Specifications
| Power Range | 0.5 HP to 20 HP |
| Mounting Standard | IEC / NEMA Flange |
| Flange Type | B5 (Large Flange) |
| Shaft | Standard Keyway |
| Speed | 2880 / 1440 / 960 / 750 RPM |
| Housing | Cast Iron / Aluminum |
Common Applications
GearboxesHydraulic PumpsDirect Drive FansAgitators
Frequently Asked Questions
What is a flange mounted motor (B5)?+
A B5 flange mounted motor has a large circular flange on the drive end for direct mounting to gearboxes, hydraulic pumps, and other driven equipment. It eliminates the need for base plates and provides precise structural alignment.
What is the difference between B5 and B14 flange mounting?+
B5 (flange mount) has a large flange with through-holes (non-threaded) — the flange diameter is larger than the motor body. B14 (face mount) has a smaller flange with threaded (tapped) holes. The most common ordering error is confusing B5 with B14.
Can a flange mounted motor be used vertically?+
Yes, flange mounted motors can be installed vertically (shaft up or shaft down). However, for larger motors in vertical orientation, reinforced bearings may be needed to handle the rotor's axial weight. Contact our engineers for guidance.
