5 HP Single Phase (132 F)
Warranty
1 Year Standard
Service
Covered by Warranty
Product Overview

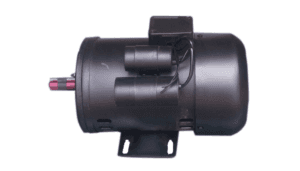

Professional-grade power for workshops and small machine tools. This high-torque single-phase motor brings industrial reliability to environments without three-phase access. Featuring a centrifugal starting switch and thermal protection, it's the reliable choice for flour mills, compressors, and woodworking machinery.
Key Features
- Optimized for domestic power supply
- Centrifugal switch for starting
- Compact aluminum/cast iron body
- Overload protection available
- Silent operation
Technical Specifications
| Power Range | 0.5 HP to 5 HP |
| Voltage | 220V - 240V |
| Speed | 1440 RPM |
| Capacitor | Start / Run |
| Insulation | Class B/F |
| Mounting | Foot Mounted |
Common Applications
Domestic Water PumpsFlour MillsCompressorsWood Working MachinerySmall Machine Tools
Frequently Asked Questions
When should I use a single-phase motor instead of three-phase?+
Single-phase motors are ideal when three-phase power supply is not available, such as in small workshops, domestic settings, and rural areas. Our single-phase motors range from 0.5 HP to 5 HP and operate on standard 220V-240V supply.
What is the maximum HP available in single-phase?+
Sun Star offers single-phase motors up to 5 HP in Frame 132F. Beyond 5 HP, three-phase motors are recommended for better efficiency and performance.
Do single-phase motors have overload protection?+
Yes, our single-phase motors come with thermal overload protection (available as option) and centrifugal starting switches. This protects against burnout due to overloading or stalling.
